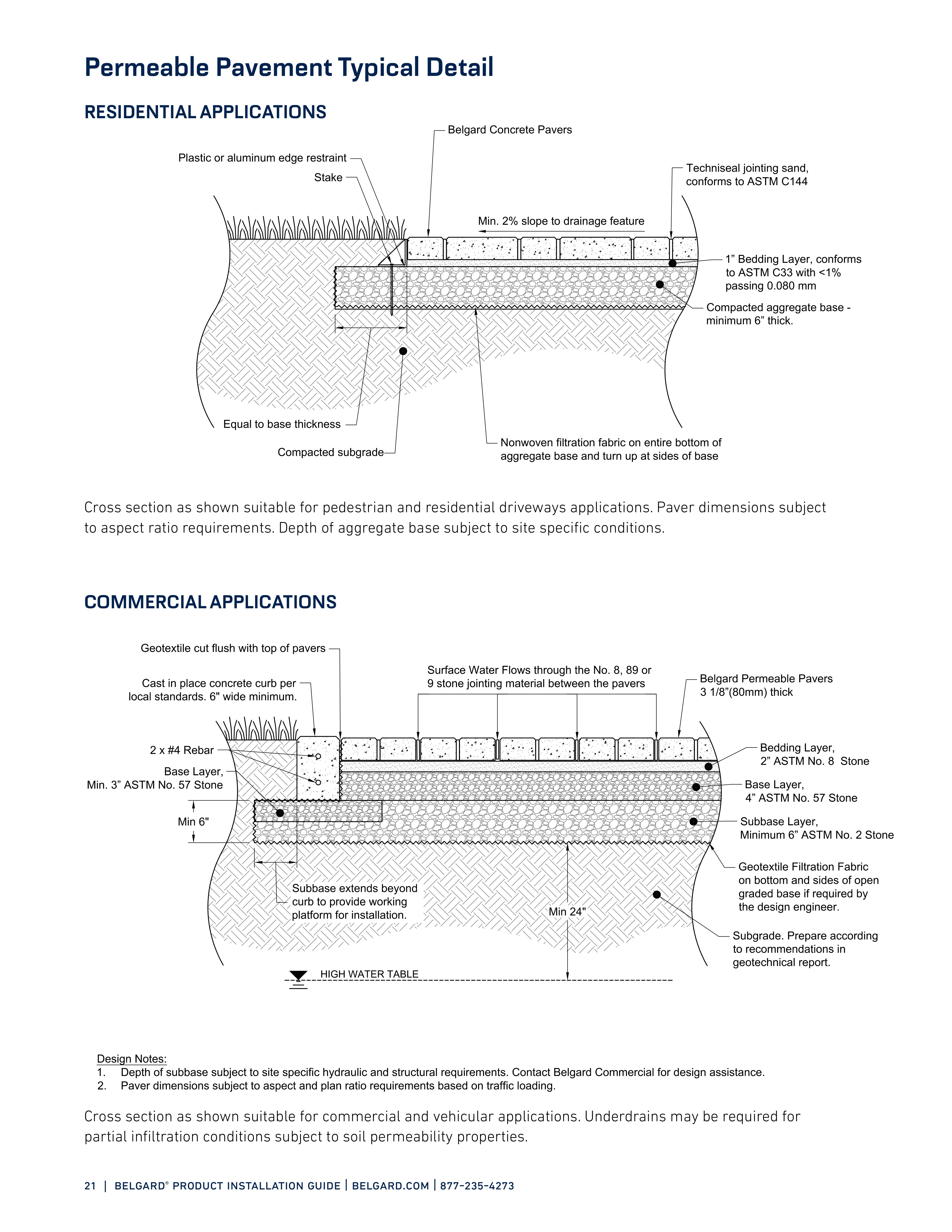

21 | belgard ® product installation guide | belgard.com | 877-235-4273 Belgard Concrete Pavers Compacted s ubgrade Compacted a ggregate b ase - minimum 6” thick. 1” Bedding Layer, conforms to ASTM C33 with <1% passing 0.080 mm Nonwoven f iltration f abric on entire bottom of aggregate base and turn up at sides of base Techniseal j ointing s and, c onforms to ASTM C144 Min. 2% slope to drainage feature Cross section as shown is suitable for pedestrian and residential driveways applications. Paver dimensions subject to aspect ratio requirements. Rigid concrete edge restraints required for commercial or vehicular applications. Depth of aggregate base subject to site specific conditions. Plastic or aluminum edge restraint Stake Equal to base thickness This drawing is for illustrative purposes only and should not be used for construction without the signature of a registered professional engineer. Scale: Drawn by: Date: Drawing number: belgardcommercial.com 877-235-4273 details@belgard.com Belgard Standard Paving Detail Sand Set on Aggregate Base w/ Edge Restraint N.T.S. 5/6/2021 PCC ICP_17 This drawing is for illustrative purposes only and should not be used for construction without the signature of a registered professional engineer. Scale: Drawn by: Date: Drawing number: belgardcommercial.com 877-235-4273 Belgard Permeable Paving Detail PICP Pavement N.T.S. 5/7/18 MAH PICP_1 Permeable Pavement Typical Detail RESIDENTIAL APPLICATIONS COMMERCIAL APPLICATIONS Cross section as shown suitable for commercial and vehicular applications. Underdrains may be required for partial infiltration conditions subject to soil permeability properties. Cross section as shown suitable for pedestrian and residential driveways applications. Paver dimensions subject to aspect ratio requirements. Depth of aggregate base subject to site specific conditions.
