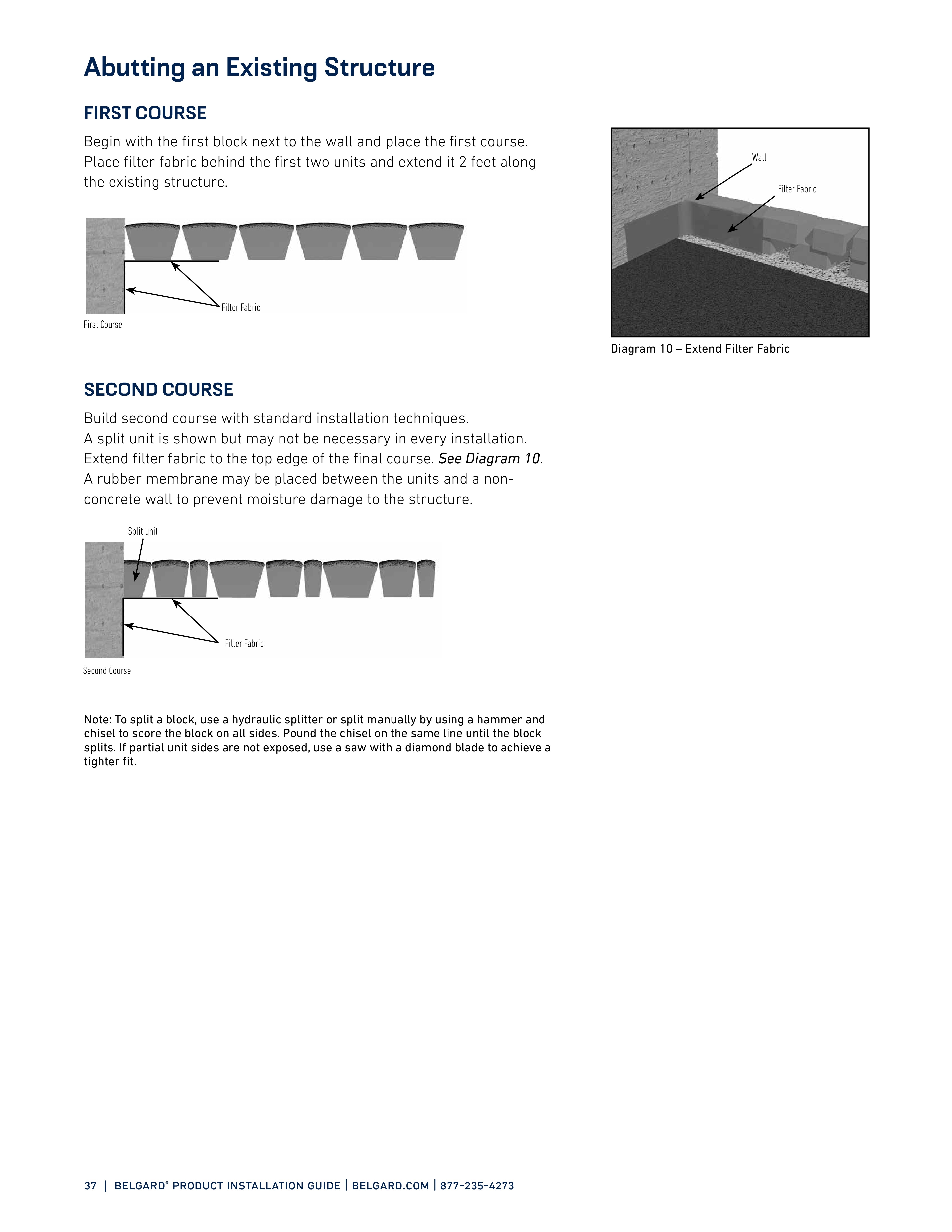

37 | belgard ® product installation guide | belgard.com | 877-235-4273 Abutting an Existing Structure FIRST COURSE Begin with the first block next to the wall and place the first course. Place filter fabric behind the first two units and extend it 2 feet along the existing structure. SECOND COURSE Build second course with standard installation techniques. A split unit is shown but may not be necessary in every installation. Extend filter fabric to the top edge of the final course. See Diagram 10 . A rubber membrane may be placed between the units and a non- concrete wall to prevent moisture damage to the structure. Filter Fabric Second Course Split unit Filter Fabric First Course Diagram 10 – Extend Filter Fabric Note: To split a block, use a hydraulic splitter or split manually by using a hammer and chisel to score the block on all sides. Pound the chisel on the same line until the block splits. If partial unit sides are not exposed, use a saw with a diamond blade to achieve a tighter fit. Wall Filter Fabric
