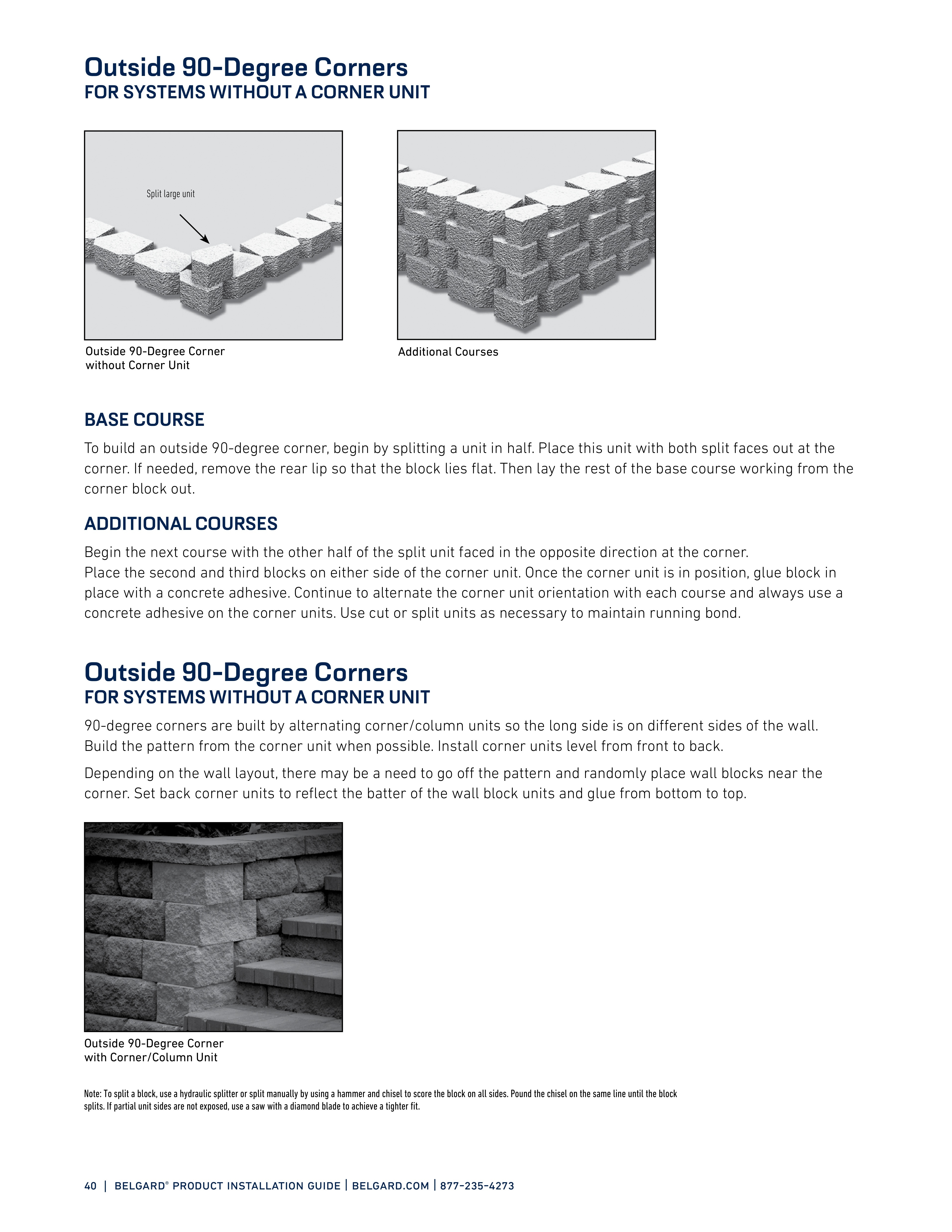

40 | belgard ® product installation guide | belgard.com | 877-235-4273 Outside 90-Degree Corners FOR SYSTEMS WITHOUT A CORNER UNIT BASE COURSE To build an outside 90-degree corner, begin by splitting a unit in half. Place this unit with both split faces out at the corner. If needed, remove the rear lip so that the block lies flat. Then lay the rest of the base course working from the corner block out. ADDITIONAL COURSES Begin the next course with the other half of the split unit faced in the opposite direction at the corner. Place the second and third blocks on either side of the corner unit. Once the corner unit is in position, glue block in place with a concrete adhesive. Continue to alternate the corner unit orientation with each course and always use a concrete adhesive on the corner units. Use cut or split units as necessary to maintain running bond. Note: To split a block, use a hydraulic splitter or split manually by using a hammer and chisel to score the block on all sides. Pound the chisel on the same line until the block splits. If partial unit sides are not exposed, use a saw with a diamond blade to achieve a tighter fit. Split large unit Outside 90-Degree Corner without Corner Unit Outside 90-Degree Corner with Corner/Column Unit Additional Courses Outside 90-Degree Corners FOR SYSTEMS WITHOUT A CORNER UNIT 90-degree corners are built by alternating corner/column units so the long side is on different sides of the wall. Build the pattern from the corner unit when possible. Install corner units level from front to back. Depending on the wall layout, there may be a need to go off the pattern and randomly place wall blocks near the corner. Set back corner units to reflect the batter of the wall block units and glue from bottom to top.
