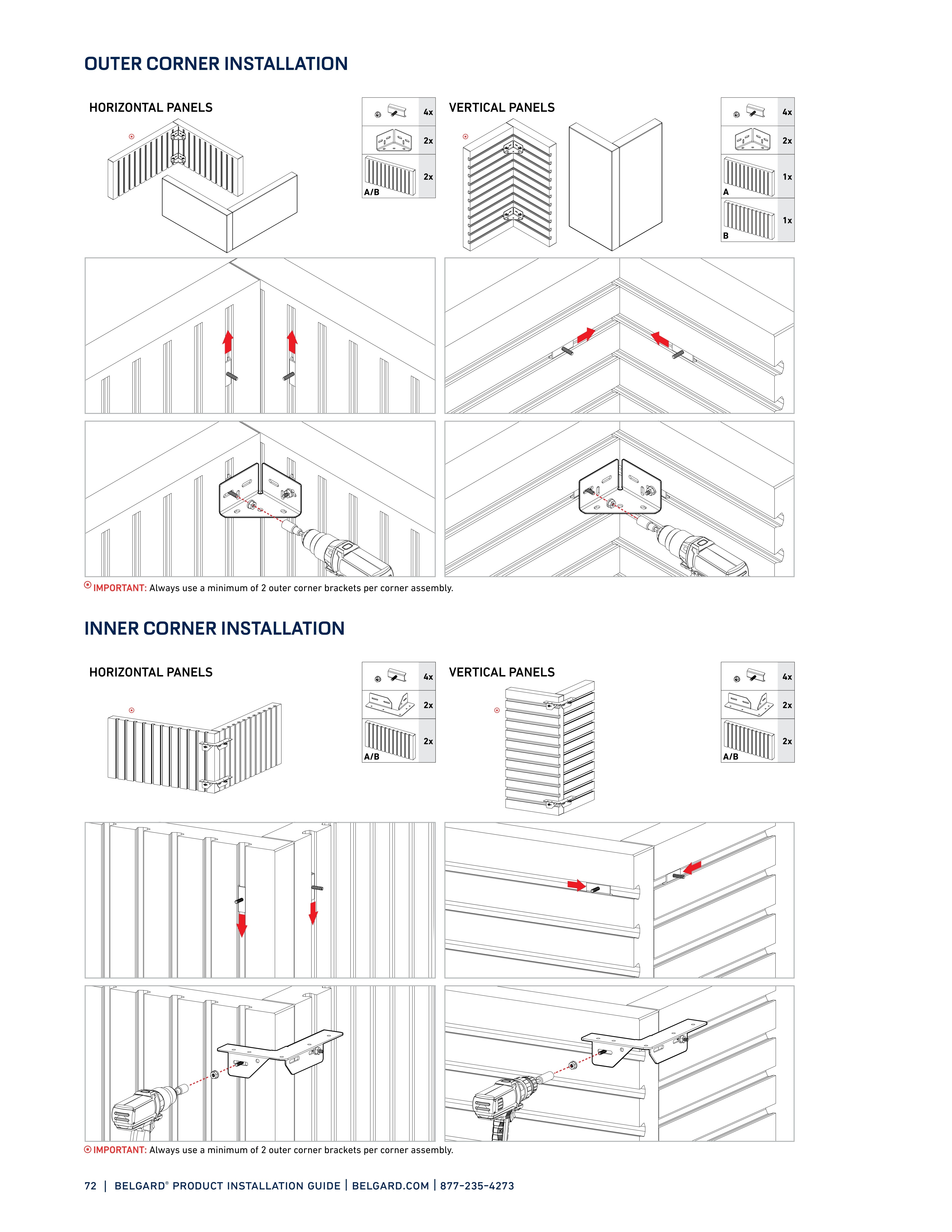

72 | belgard ® product installation guide | belgard.com | 877-235-4273 10 ARTFORMS ™ PANEL SYSTEM OUTER CORNER INSTALLATION IMPORTANT: Always use a minimum of 2 outer corner brackets per corner assembly. See Tips and Tricks from page 27 for more details. * HORIZONTAL PANELS VERTICAL PANELS * * A/B B A 4x 4x 2x 2x 1x 2x 1x 11 ARTFORMS ™ PANEL SYSTEM INNER CORNER INSTALLATION IMPORTANT: Always use a minimum of 2 outer corner brackets per corner assembly. See Tips and Tricks from page 27 for more details. * HORIZONTAL PANELS VERTICAL PANELS * * A/B A/B 4x 4x 2x 2x 2x 2x IMPORTANT: Always use a minimum of 2 outer corner brackets per corner assembly. IMPORTANT: Always use a minimum of 2 outer corner brackets per corner assembly. * * OUTER CORNER INSTALLATION INNER CORNER INSTALLATION
