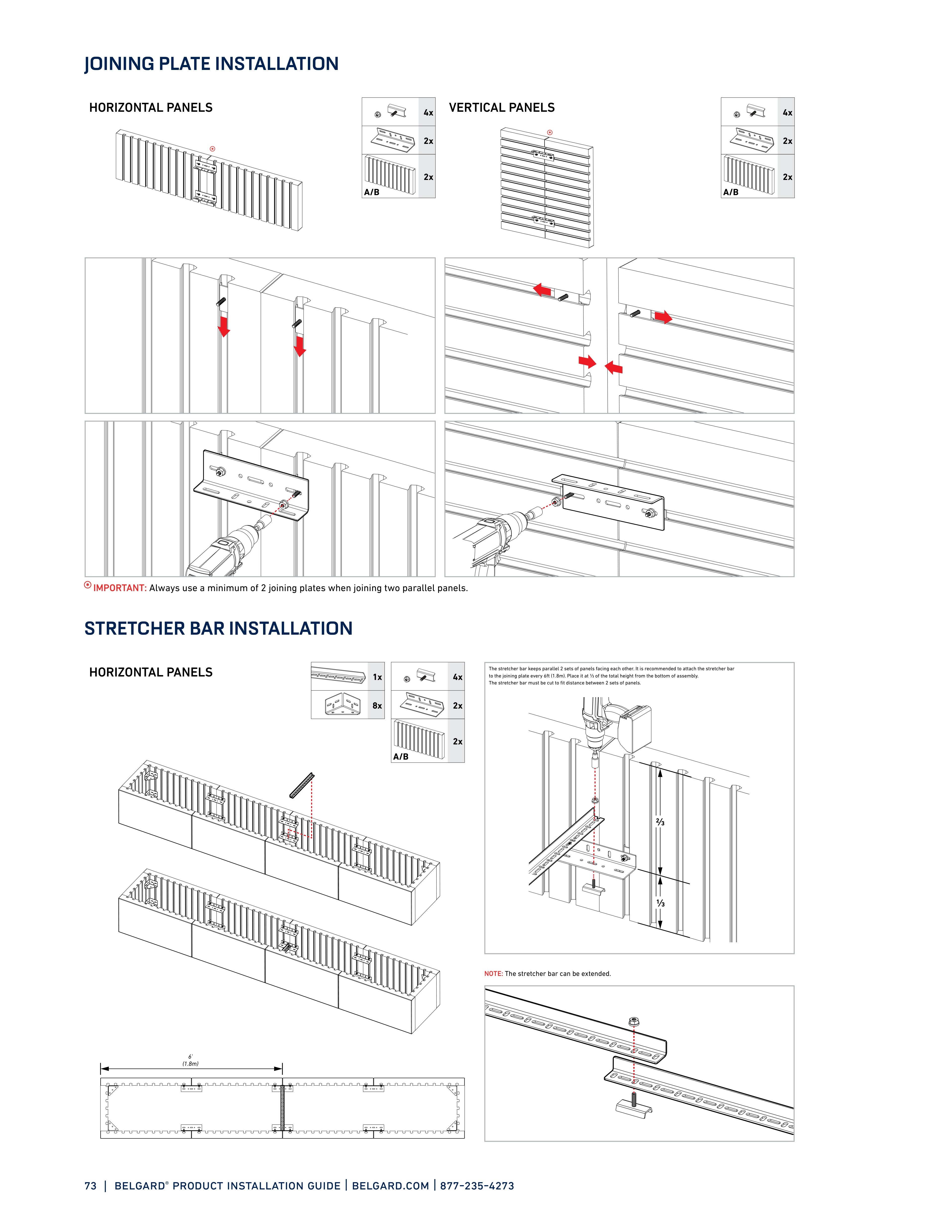

73 | belgard ® product installation guide | belgard.com | 877-235-4273 12 ARTFORMS ™ PANEL SYSTEM JOINING PLATE INSTALLATION IMPORTANT: Always use a minimum of 2 joining plates when joining two parallel panels. See Tips and Tricks from page 27 for more details. * HORIZONTAL PANELS VERTICAL PANELS * * A/B 4x 2x 2x A/B 4x 2x 2x 13 ARTFORMS ™ PANEL SYSTEM STRETCHER BAR INSTALLATION NOTE: The stretcher bar can be extended. The stretcher bar keeps parallel 2 sets of panels facing each other. It is recommended to attach the stretcher bar to the joining plate every 6ft (1.8m). Place it at 1/3 of the total height from the bottom of assembly. The stretcher bar must be cut to fit distance between 2 sets of panels. 2/3 1/3 NOTE: See Tips and Tricks from page 27 for more details. HORIZONTAL PANELS A/B 4x 1x 2x 8x 2x 6' (1.8m) IMPORTANT: Always use a minimum of 2 joining plates when joining two parallel panels. * JOINING PLATE INSTALLATION STRETCHER BAR INSTALLATION
