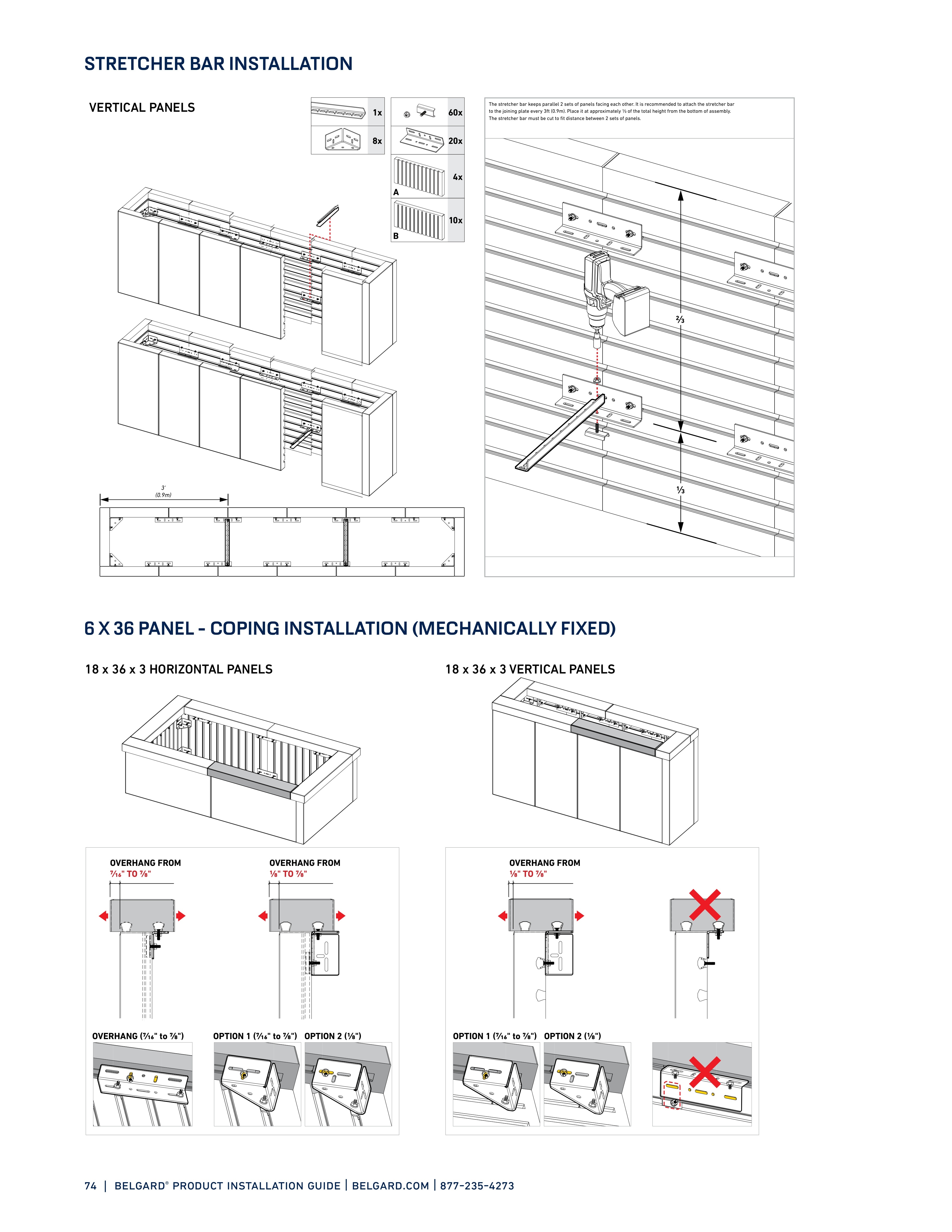

74 | belgard ® product installation guide | belgard.com | 877-235-4273 14 ARTFORMS ™ PANEL SYSTEM NOTE: See Tips and Tricks from page 27 for more details. STRETCHER BAR INSTALLATION The stretcher bar keeps parallel 2 sets of panels facing each other. It is recommended to attach the stretcher bar to the joining plate every 3ft (0.9m). Place it at approximately 1/3 of the total height from the bottom of assembly. The stretcher bar must be cut to fit distance between 2 sets of panels. VERTICAL PANELS A B 60x 1x 20x 8x 4x 10x 3' (0.9m) 2/3 1/3 15 ARTFORMS ™ PANEL SYSTEM 6 x 36 PANEL - COPING INSTALLATION (MECHANICALLY FIXED) 18 x 36 x 3 HORIZONTAL PANELS OVERHANG FROM 7/16" TO 7/8" OVERHANG (7/16" to 7/8") OPTION 1 (7/16" to 7/8") OPTION 1 (7/16" to 7/8") OPTION 2 (1/8") OPTION 2 (1/8") OVERHANG FROM 1/8" TO 7/8" OVERHANG FROM 1/8" TO 7/8" 18 x 36 x 3 VERTICAL PANELS NOTE: See Tips and Tricks from page 27 for more details. STRETCHER BAR INSTALLATION 6 X 36 PANEL - COPING INSTALLATION (MECHANICALLY FIXED)
