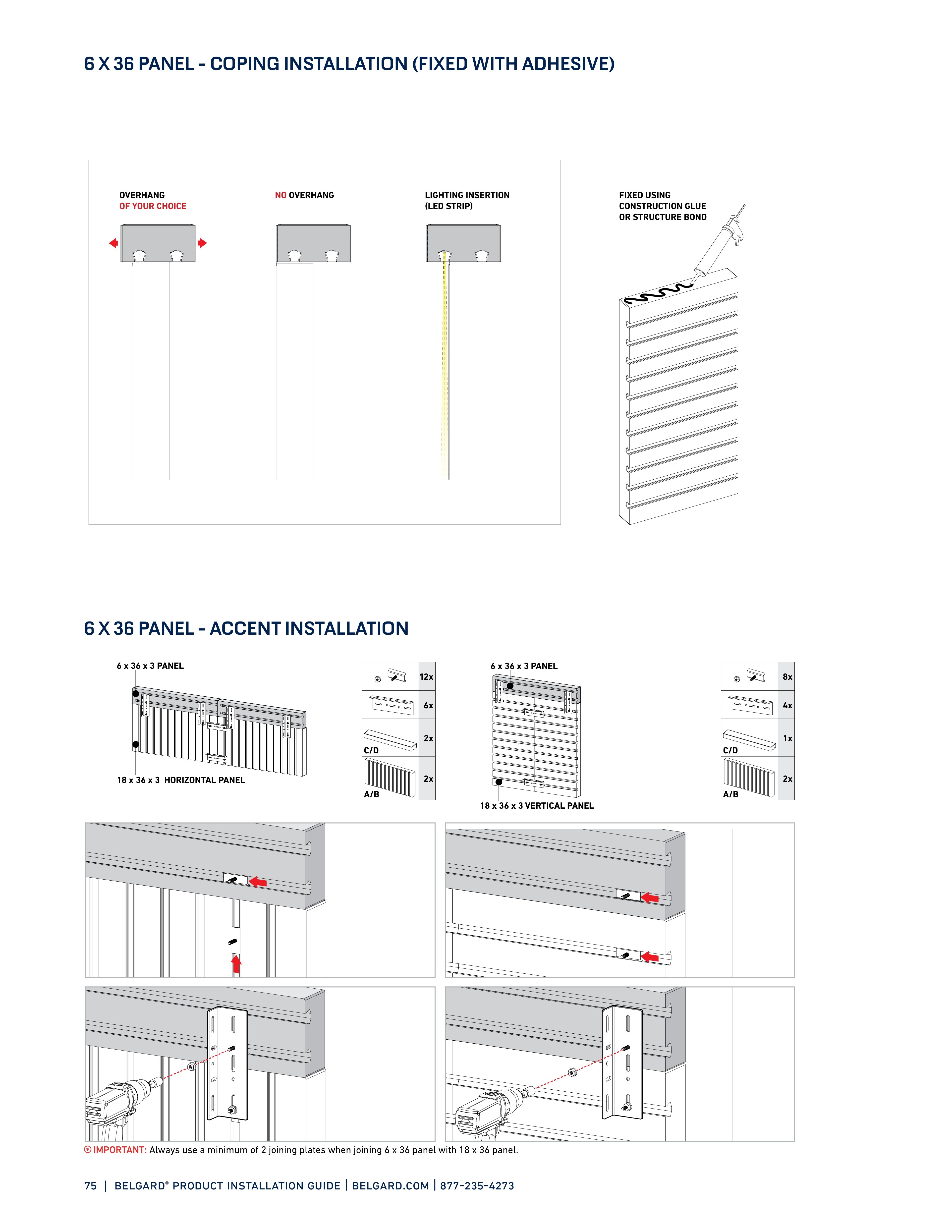

75 | belgard ® product installation guide | belgard.com | 877-235-4273 16 ARTFORMS ™ PANEL SYSTEM 6 x 36 PANEL - COPING INSTALLATION (FIXED WITH ADHESIVE) FIXED USING CONSTRUCTION GLUE OR STRUCTURE BOND OVERHANG OF YOUR CHOICE NO OVERHANG LIGHTING INSERTION (LED STRIP) 17 ARTFORMS ™ PANEL SYSTEM 6 x 36 x 3 PANEL 18 x 36 x 3 HORIZONTAL PANEL IMPORTANT: Always use a minimum of 2 joining plates when joining 6 x 36 panel with 18 x 36 panel. See Tips and Tricks from page 27 for more details. * C/D C/D A/B A/B 12x 8x 6x 4x 2x 1x 2x 2x 6 x 36 PANEL - ACCENT INSTALLATION 6 x 36 x 3 PANEL 18 x 36 x 3 VERTICAL PANEL IMPORTANT: Always use a minimum of 2 joining plates when joining 6 x 36 panel with 18 x 36 panel. * 6 X 36 PANEL - COPING INSTALLATION (FIXED WITH ADHESIVE) 6 X 36 PANEL - ACCENT INSTALLATION
