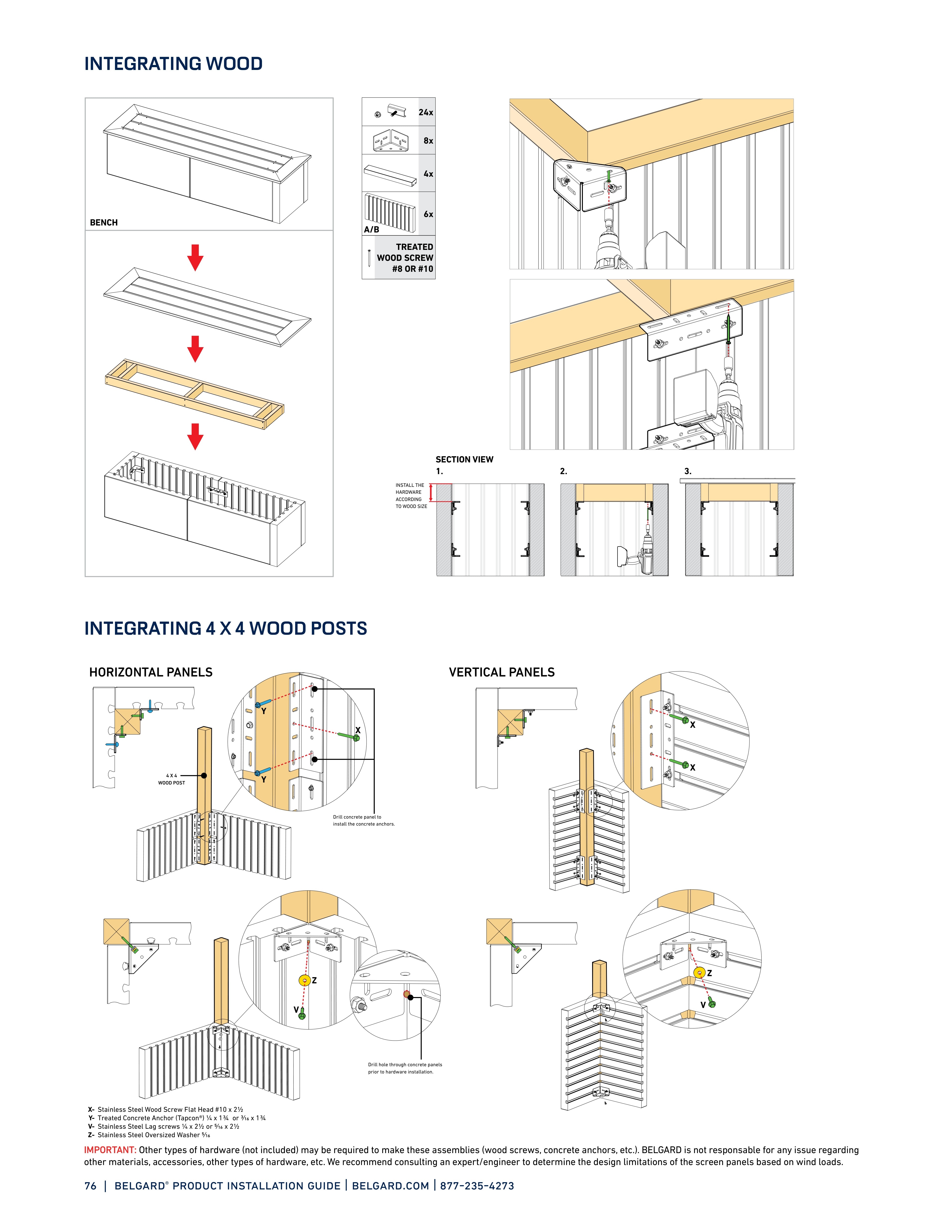

76 | belgard ® product installation guide | belgard.com | 877-235-4273 18 ARTFORMS ™ PANEL SYSTEM x24 x 8 x 4 x 6 A/B INTEGRATING WOOD BENCH INSTALL THE HARDWARE ACCORDING TO WOOD SIZE SECTION VIEW 1. 2. 3. NOTE: See Tips and Tricks from page 27 for more details. x24 x 8 x 4 x 6 A/B A/B 24x 8x 4x 6x TREATED WOOD SCREW #8 OR #10 19 ARTFORMS ™ PANEL SYSTEM INTEGRATING 4 x 4 WOOD POSTS 4 X 4 WOOD POST Drill concrete panel to install the concrete anchors. Drill hole through concrete panels prior to hardware installation. Y Y V V Z Z X X X IMPORTANT : Other types of hardware (not included) may be required to make these assemblies (wood screws, concrete anchors, etc.). BELGARD is not responsable for any issue regarding other materials, accessories, other types of hardware, etc. We recommend consulting an expert/engineer to determine the design limitations of the screen panels based on wind loads. HORIZONTAL PANELS VERTICAL PANELS X- Stainless Steel Wood Screw Flat Head #10 x 2½ Y- Treated Concrete Anchor (Tapcon®) 1/4 x 1¾ or 3/16 x 1¾ V- Stainless Steel Lag screws 1/4 x 2½ or 5/16 x 2½ Z- Stainless Steel Oversized Washer 5/16 IMPORTANT: Other types of hardware (not included) may be required to make these assemblies (wood screws, concrete anchors, etc.). BELGARD is not responsable for any issue regarding other materials, accessories, other types of hardware, etc. We recommend consulting an expert/engineer to determine the design limitations of the screen panels based on wind loads. INTEGRATING WOOD INTEGRATING 4 X 4 WOOD POSTS
