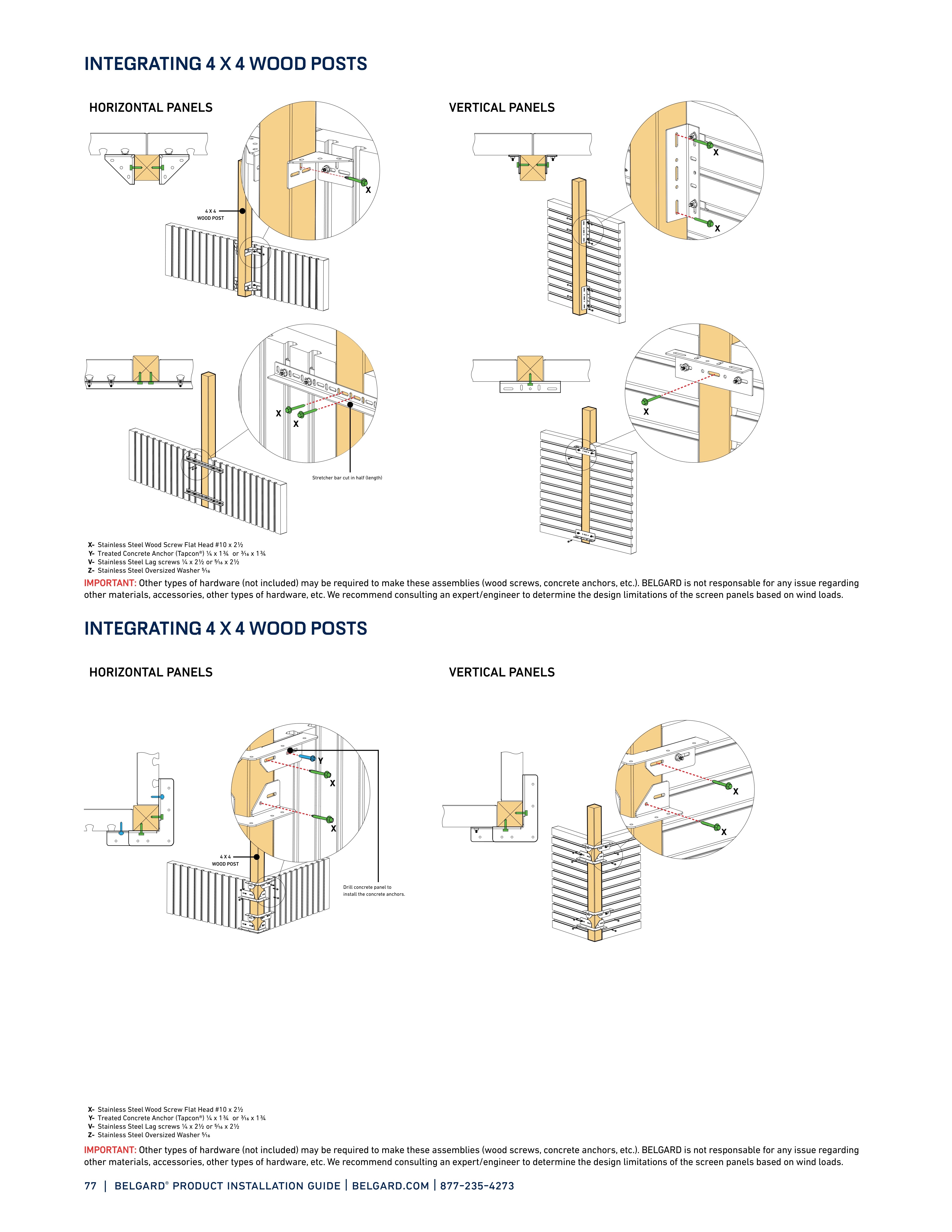

77 | belgard ® product installation guide | belgard.com | 877-235-4273 20 ARTFORMS ™ PANEL SYSTEM INTEGRATING 4 x 4 WOOD POSTS Stretcher bar cut in half (length) X X X X X X IMPORTANT: Other types of hardware (not included) may be required to make these assemblies (wood screws, concrete anchors, etc.). BELGARD is not responsable for any issue regarding other materials, accessories, other types of hardware, etc. We recommend consulting an expert/engineer to determine the design limitations of the screen panels based on wind loads. HORIZONTAL PANELS VERTICAL PANELS 4 X 4 WOOD POST X- Stainless Steel Wood Screw Flat Head #10 x 2½ Y- Treated Concrete Anchor (Tapcon®) 1/4 x 1¾ or 3/16 x 1¾ V- Stainless Steel Lag screws 1/4 x 2½ or 5/16 x 2½ Z- Stainless Steel Oversized Washer 5/16 21 ARTFORMS ™ PANEL SYSTEM INTEGRATING 4 x 4 WOOD POSTS Drill concrete panel to install the concrete anchors. X X Y X X 4 X 4 WOOD POST IMPORTANT : Other types of hardware (not included) may be required to make these assemblies (wood screws, concrete anchors, etc.). BELGARD is not responsable for any issue regarding other materials, accessories, other types of hardware, etc. We recommend consulting an expert/engineer to determine the design limitations of the screen panels based on wind loads. HORIZONTAL PANELS VERTICAL PANELS X- Stainless Steel Wood Screw Flat Head #10 x 2½ Y- Treated Concrete Anchor (Tapcon®) 1/4 x 1¾ or 3/16 x 1¾ V- Stainless Steel Lag screws 1/4 x 2½ or 5/16 x 2½ Z- Stainless Steel Oversized Washer 5/16 IMPORTANT: Other types of hardware (not included) may be required to make these assemblies (wood screws, concrete anchors, etc.). BELGARD is not responsable for any issue regarding other materials, accessories, other types of hardware, etc. We recommend consulting an expert/engineer to determine the design limitations of the screen panels based on wind loads. IMPORTANT: Other types of hardware (not included) may be required to make these assemblies (wood screws, concrete anchors, etc.). BELGARD is not responsable for any issue regarding other materials, accessories, other types of hardware, etc. We recommend consulting an expert/engineer to determine the design limitations of the screen panels based on wind loads. INTEGRATING 4 X 4 WOOD POSTS INTEGRATING 4 X 4 WOOD POSTS
