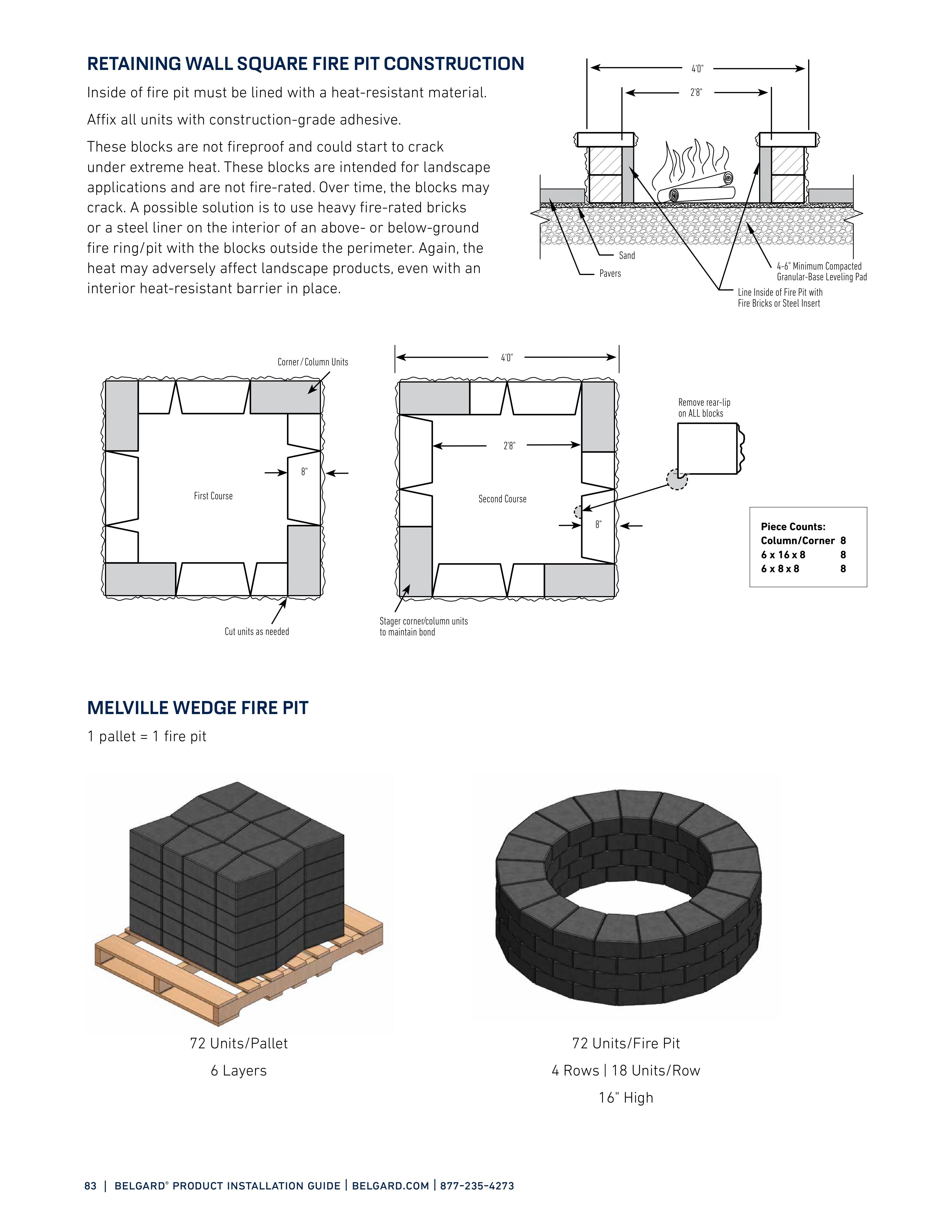

83 | belgard ® product installation guide | belgard.com | 877-235-4273 First Course RETAINING WALL SQUARE FIRE PIT CONSTRUCTION Inside of fire pit must be lined with a heat-resistant material. Affix all units with construction-grade adhesive. These blocks are not fireproof and could start to crack under extreme heat. These blocks are intended for landscape applications and are not fire-rated. Over time, the blocks may crack. A possible solution is to use heavy fire-rated bricks or a steel liner on the interior of an above- or below-ground fire ring/pit with the blocks outside the perimeter. Again, the heat may adversely affect landscape products, even with an interior heat-resistant barrier in place. MELVILLE WEDGE FIRE PIT 1 pallet = 1 fire pit 72 Units/Pallet 6 Layers 72 Units/Fire Pit 4 Rows | 18 Units/Row 16" High Second Course 4'0" 2'8" 8" 8" Corner / Column Units Stager corner/column units to maintain bond Remove rear-lip on ALL blocks Piece Counts: Column/Corner 8 6 x 16 x 8 8 6 x 8 x 8 8 Pavers Sand Line Inside of Fire Pit with Fire Bricks or Steel Insert 4'0" 2'8" 4-6" Minimum Compacted Granular-Base Leveling Pad Cut units as needed
